Bessey Body REVO Parallel Clamp 300mm, 600mm, 800mm And 100mm

Bessey Body parallel clamp

Hight quality, designed for professional parallel clamps.

Bessey REVO clamp dimensions:

	←a→	←b→	←e→	←x→
Product code	mm	mm	mm	mm
KRE30	300	95	255-390	29.9
KRE60	600	95	255-730	29.9
KRE80	800	95	255-930	29.9
KRE100	1000	95	255-1130	29.9

Bessey parallel clamp features:

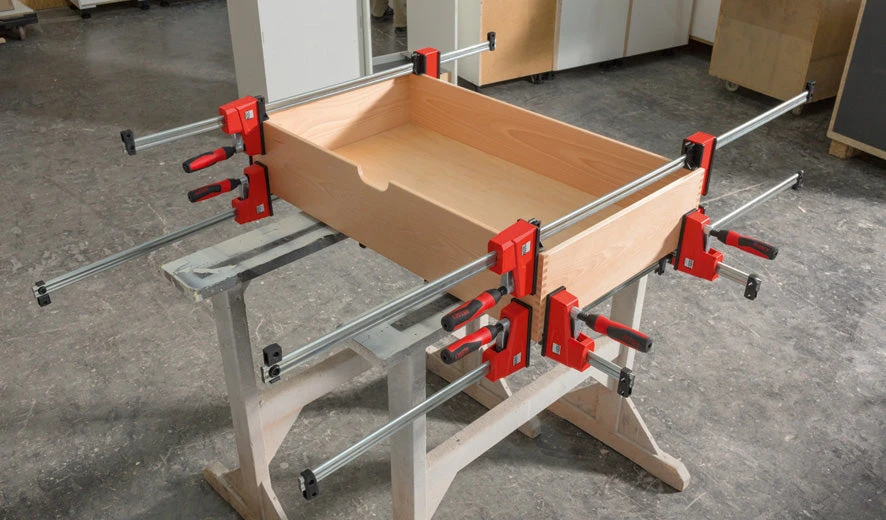

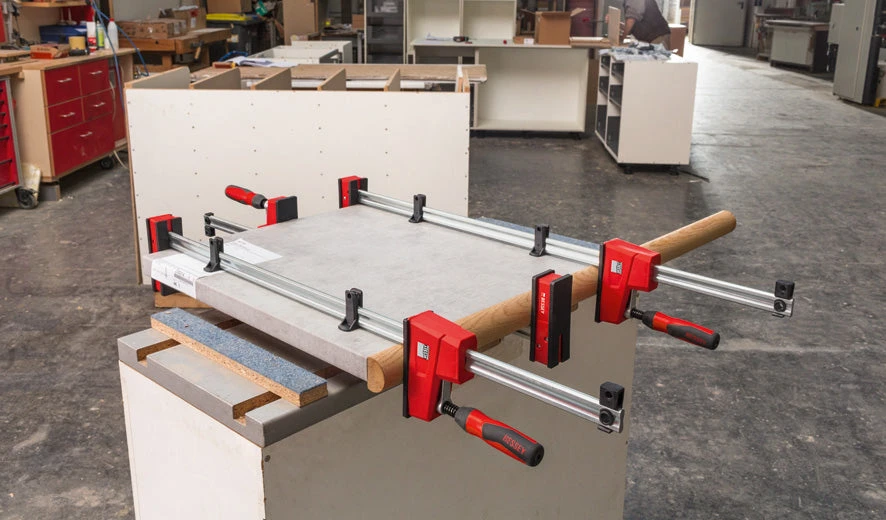

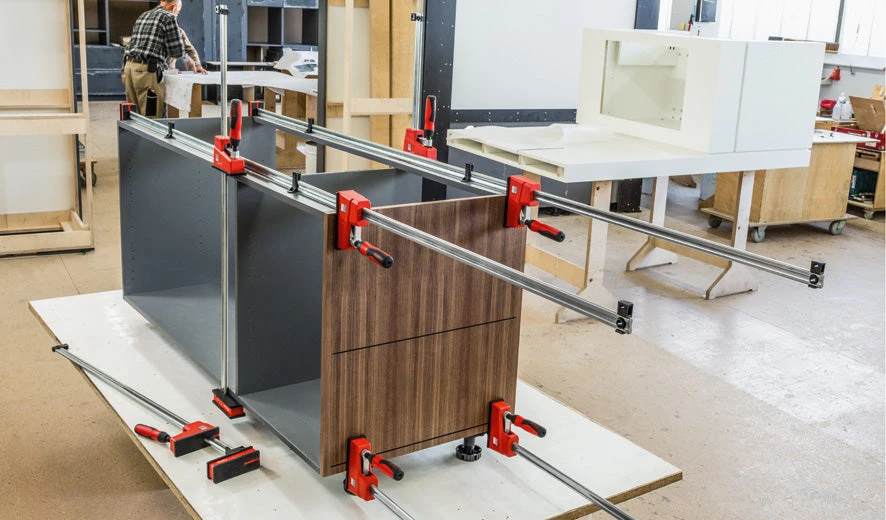

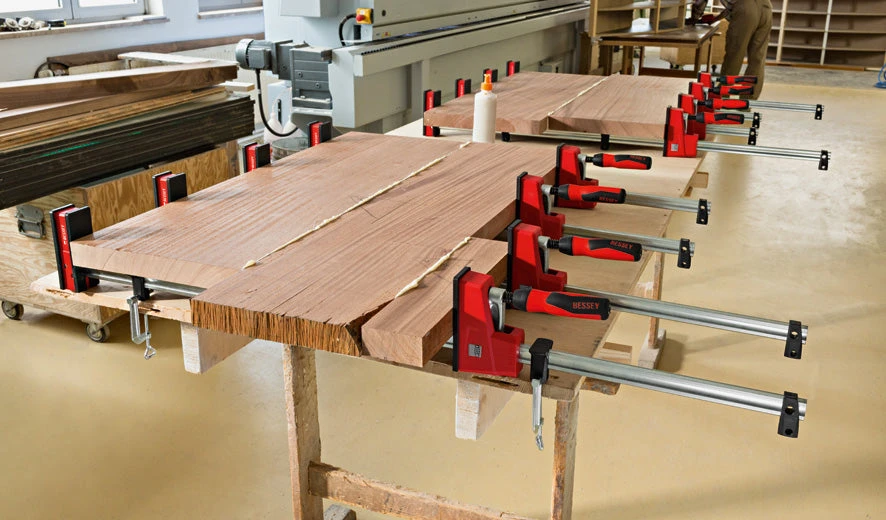

Precise and gentile: Workpieces with sensitive surfaces can be clamped and spread exactly parallel to each other – even behind and on the side of the rail. Corners and recessed edges as well as pointed and round surfaces can also be perfectly aligned:

• Extremely large clamping surfaces that are attached perpendicular to the rail
• Three removable pressure caps that are repellent to glue, and also resistant to paint and grease solvents

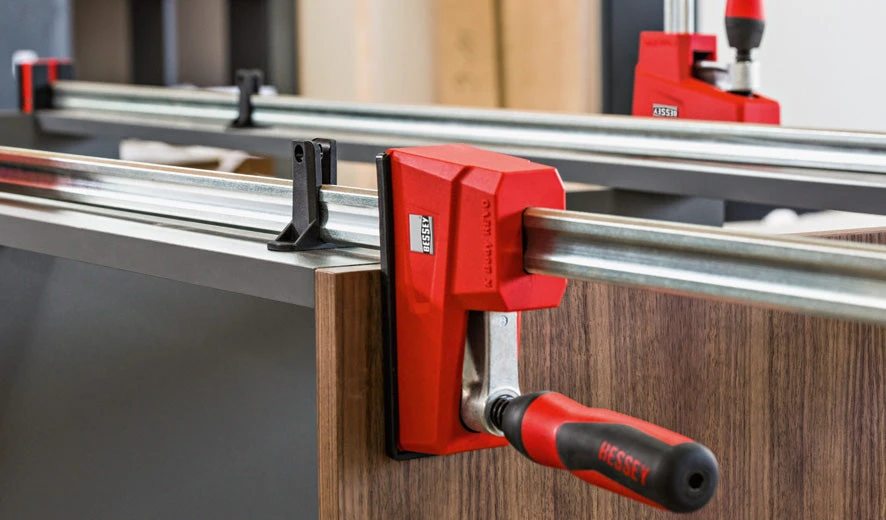

• Workpiece supports that prevent the workpiece from coming into contact with the rail

Safe: They securely clamp with a clamping force of up to 8.000 N:

• Metal-reinforced plastic housing
• Optimised sliding arm with double slide protection: It holds the clamp reliably with the set clamping force and prevents any unintentional slipping of the sliding arm in the unclamped condition. The set clamping force is maintained and the sliding arm cannot unintentionally slip in the unclamped condition

Versatile: The clamps provide an enormous number of possible applications:

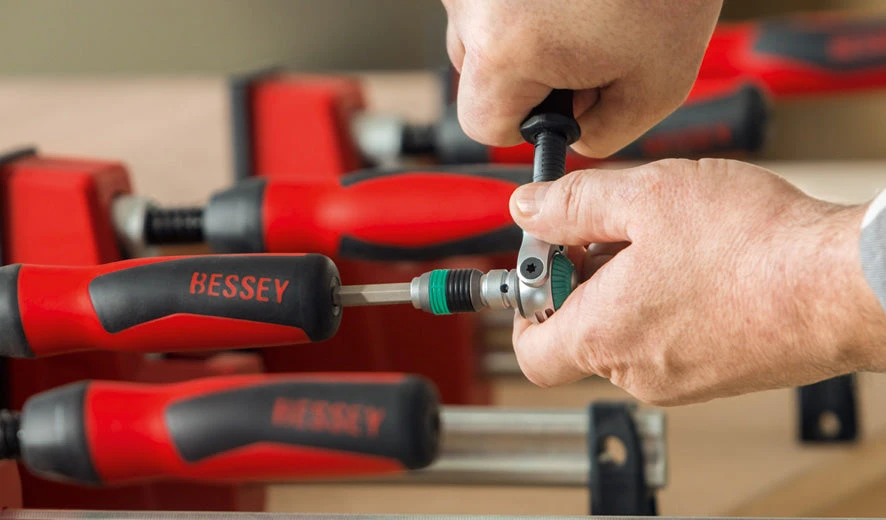

• Ergonomically formed 2-component symmetrical plastic handle with hexagon socket means the clamping force can be comfortably applied (max. torque 17 Nm)

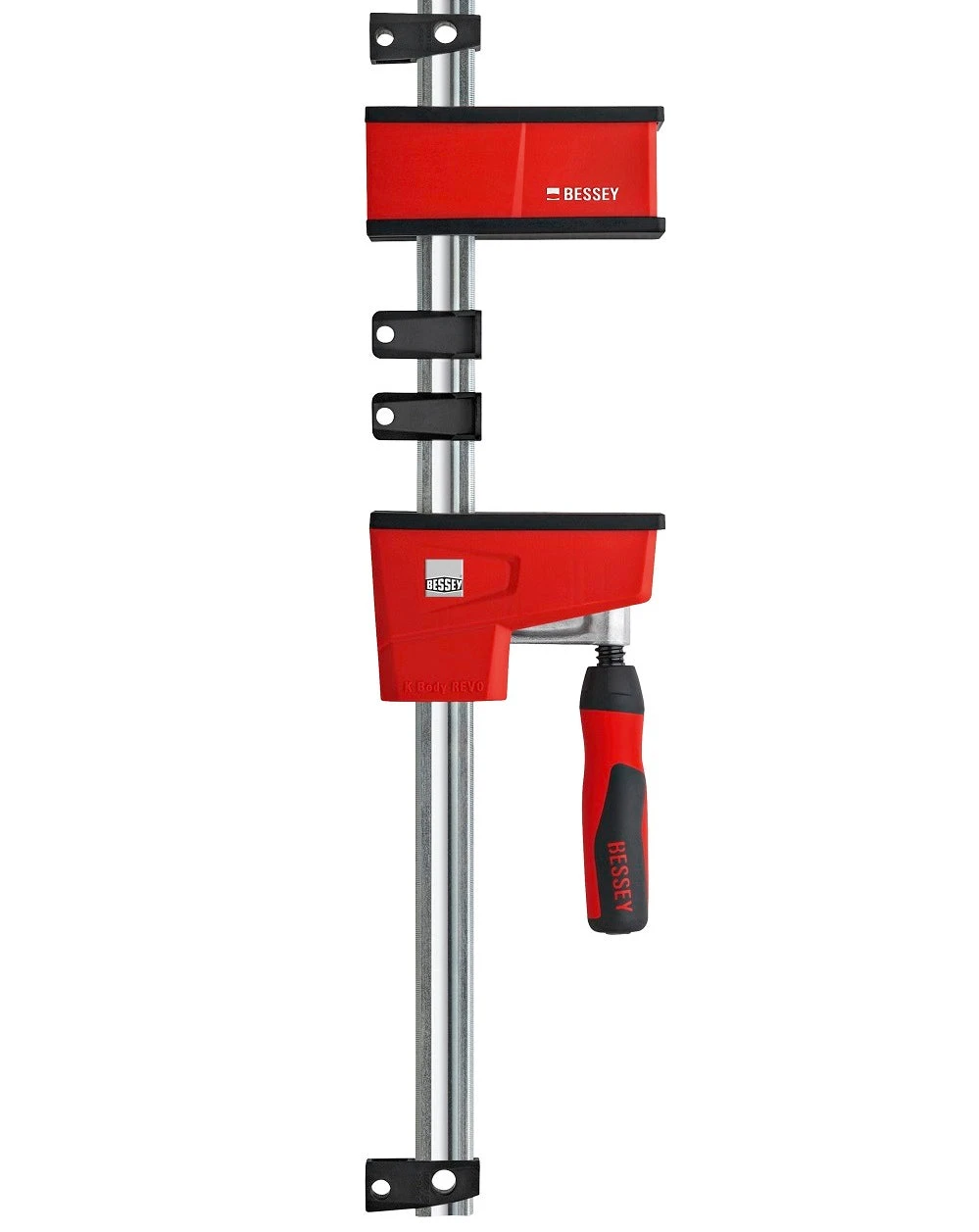

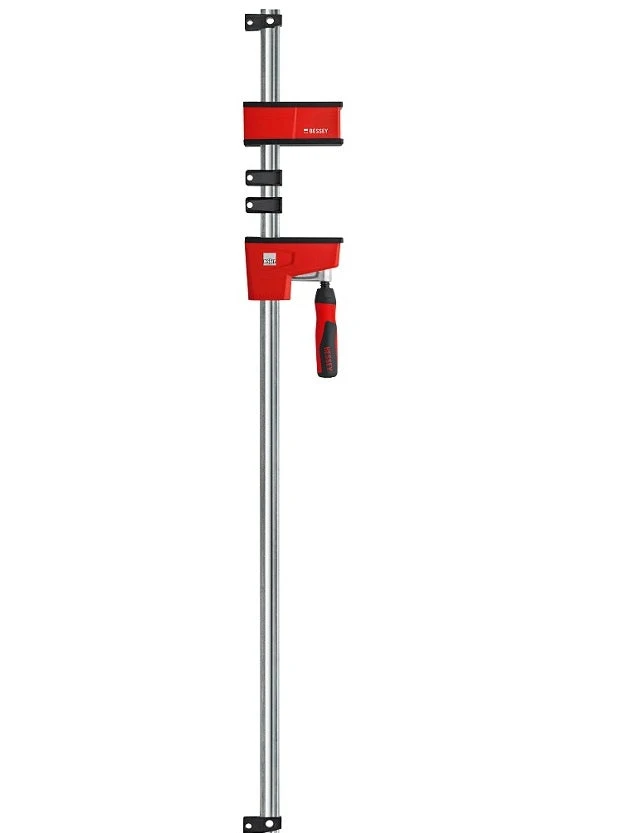

• Continuously adjustable head for the KREV Vario version enables the clamp to be positioned in the middle of the workpiece for optimum weight distribution

More features:

• Clamping force up to 8,000 N.
• Very large parallel clamping surfaces with 3 removable pressure caps.
• Operating jaw stays where you put it for easy set up.
• Metal-reinforced plastic housing and optimised sliding arm with double slide protection for more power and safety:
• High-quality 2-component symmetrical plastic handle with hexagon socket for the comfortable application of the clamping force (max. torque 17 Nm).
• KREV with continuously adjustable and fixable upper section for optimum positioning on the workpiece

Bessey parallel clamp Video:

Bessey parallel clamp product brochure

Brochure of Bessey Body REVO parallel clamp
