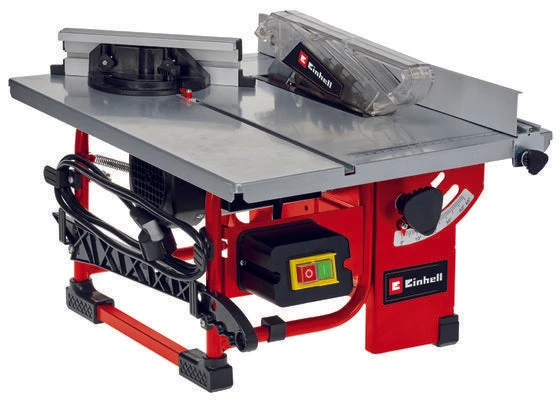

Einhell Bench-Type Circular Table Saw TC-TS 200

Einhell TC-TS 200 Table Saw

The Einhell TC-TS 200 bench-type circular saw is a compact, powerful tool that provides good service to DIY enthusiasts wanting to cut wood, fiberboard and many other materials. The saw blade tilts to the left and the included angle stop (+/- 60°), both enable precision miter cutting.

The TC-TS 200 bench-type circular saw comes with a parallel stop with double clamping and two stop heights. The cable can be safely and conveniently stowed on the integrated cable holder. The carbide blade always delivers clean, powerful cuts. A push stick is required for safety reasons and has its own holder where it is always within reaching distance.

• The Einhell circular table saw TC-TS 200 is equipped with a high-quality carbide saw blade, making it ideally equipped for fast sawing work in the home, workshop or garage.
• The smooth-running sliding carriage allows long cuts to be made accurately and precisely.
• The additional parallel stop provide straight cuts in the workpiece. Machining is even more accurate and easier with these two components. With a crank combination attached to the housing, the angle of the saw blade can be adjusted easily and individually for each cut from 45° to 90° with just one hand.
• The accessories holder on the device ensures safe transport and optimal storage – the sliding carriage and the tool for changing the saw blade are well stowed away.
• The overload switch protects the 800-watt motor from overload while working with wood or other materials of the circular table saw from further damage.

Einhell table saw Features

• Small, compact but powerfull – Perfect for the mobile usage!
• Tubular frame construction with crossbars for high stability
• Powerful and low-maintenance induction motor with much power
• Parallel stop with clamps on both sides for exact cuts

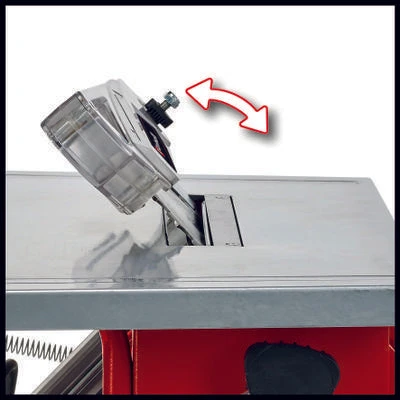

• Blade angle adjustment to the left for angle cuts (0 – 45°)

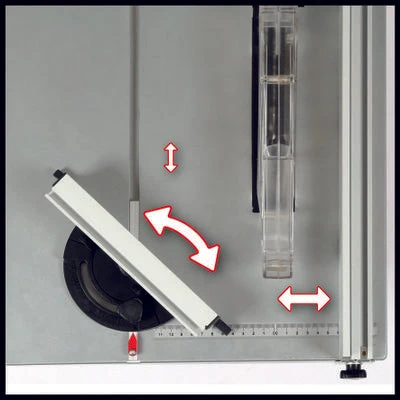

• Including an angle stop (+/- 60°) for easy doing mitre cuts

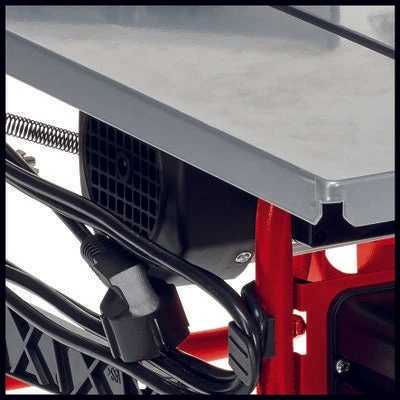

• Cable winder at the housing for tidy storage
• Extractor adapter for all wet-and-dry vacuum cleaners with 36 mm

Einhell table saw Specifications

Mains supply 230-240 V | 50 Hz

Power 500 W

Max. power (S6 | S6%) 800 W | 15 %

Idle speed 2950 min^-1

Saw blade 200 mm x 16 mm

Number of saw teeth 24 Pieces

Swiveling range of saw blade 45 °

Max. cutting height at 45° 27 mm

Max. cutting height at 90° 45 mm

Diameter of suction adapter 36 mm

Size of working table 505 mm x 373 mm

Length 540 mm

Width 410 mm

Height 360 mm

Gross weight single packaging 13.6 kg

Product weight 11 kg

Einhell table saw product manual & documents

Product manual of Einhell Bench-Type Circular Saw TC-TS 200

Product sheet of Einhell Bench-Type Circular Saw TC-TS 200

Warranty

24 months manufacturer warranty.
