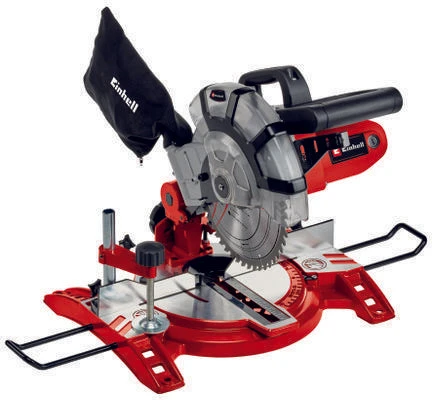

Einhell TC-MS 2112 1600W Compound Mitre Saw

Einhell TC-MS 2112 1600W Compound Mitre Saw

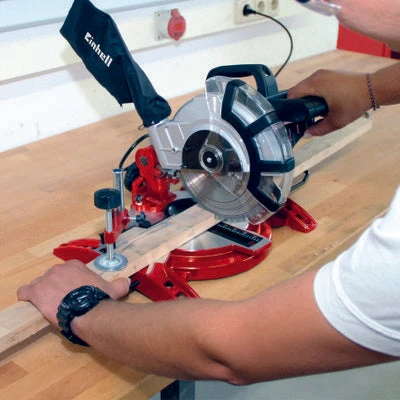

Equipped with a carbide saw blade in professional quality, the TC-MS 2112 crosscut and miter saw is quickly available to carry out minor jobs such as making crosscuts and miter cuts in workpieces made of wood, laminated panels and plastics. The high-quality work table made of die-cast aluminium comes with an exact angle adjustment facility which can be latched single-handedly in various positions.

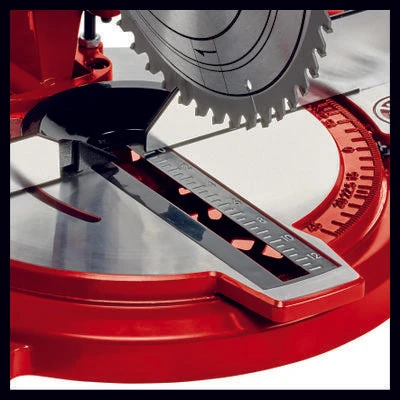

The table insert is equipped with a practical scale for reading off the workpiece width easily from the working position. While workpiece supports on both sides and a reliable clamping device ensure exact operation, a cutting depth control facility permits even more chhexagonging jobs to be performed with ease.

The carbide-tipped saw blade in professional quality offers a cutting capacity of over 200 m in particleboard and is easily changed thanks to a spindle lock. A sawdust bag keeps the workplace clean and a transport brace ensures easy and safe transportation.

Einhell Compound Mitre Saw Features

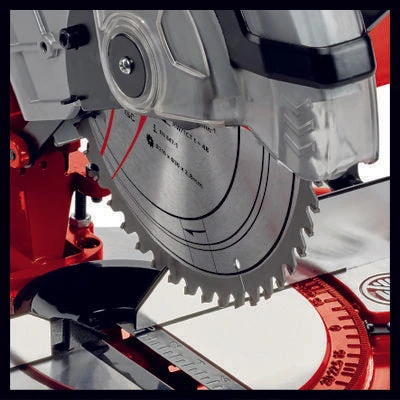

• High-quality HW-saw blade for perfect cuts
• The work table is made of light and stable alu die-cast

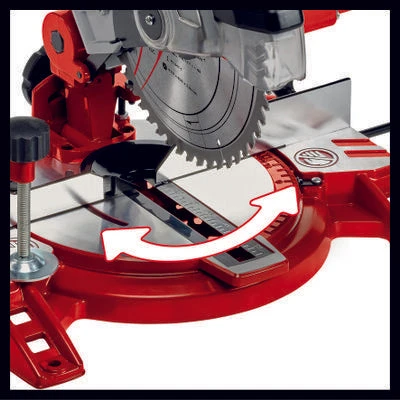

• Turntable with accurate locking positions for all common angles

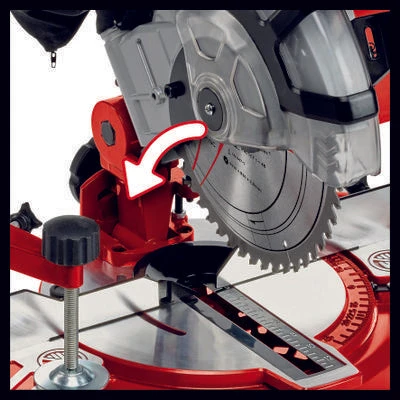

• The saw head is infinitely up to 45° tiltable to the left

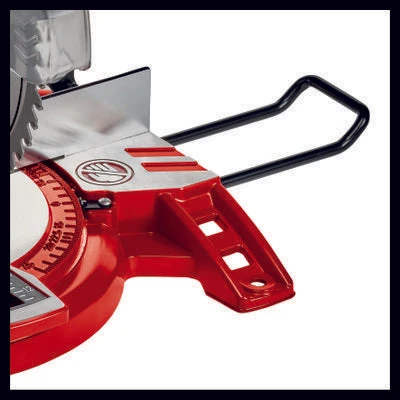

• Workpiece supports on both sides for long workpieces

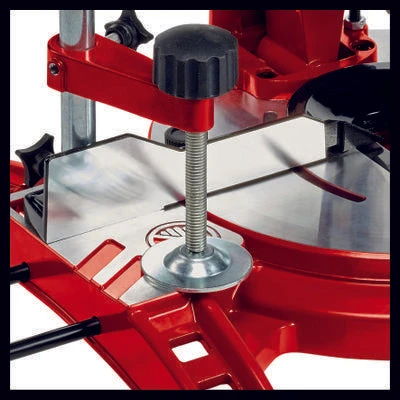

• Clamping device for holding the workpiece securely in position

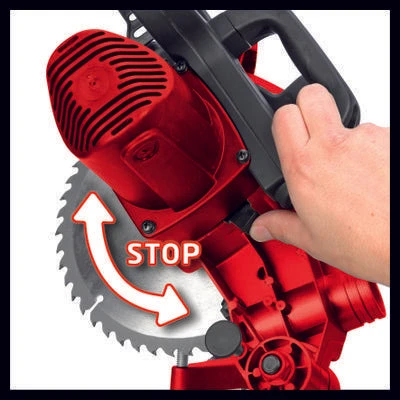

• Spindle lock for an easy and fast blade change

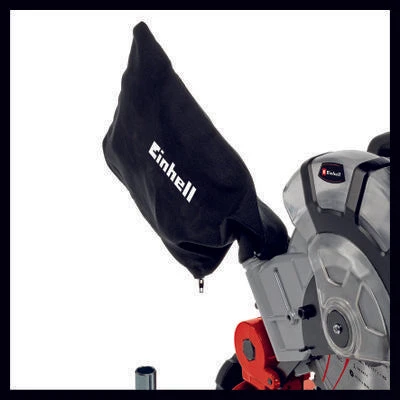

• Includes sawdust bag
• Well readable angle scales for the mitre- and angle-cuts

Specifications

• Mains supply 220-240 V | 50 Hz
• Power 1400 W
• Number of saw teeth 48 Pieces
• Max. power (S6 | S6%) 1600 W | 40 %
• Idle speed 5000 min^-1
• Saw blade 210 mm x 30 mm
• Swiveling range 45 ° – 45 °
• Mitre cut 45 ° – 0 °
• Cutting width 90° x 90° 120 mm x 55 mm
• Cutting width 90° x 45° 80 mm x 55 mm
• Cutting width 45° x 90° 120 mm x 32 mm
• Cutting width 45° x 45° 80 mm x 32 mm
• Length 480 mm
• Width 321 mm
• Height 296 mm
• Gross weight single packaging 8.8 kg
• Product weight 7.1 kg

Product manual & documents

Product manual of Einhell TC-MS 2112 1600W Compound Mitre Saw

Product sheet of Einhell TC-MS 2112 1600W Compound Mitre Saw

Warranty

24 months manufacturer warranty.
