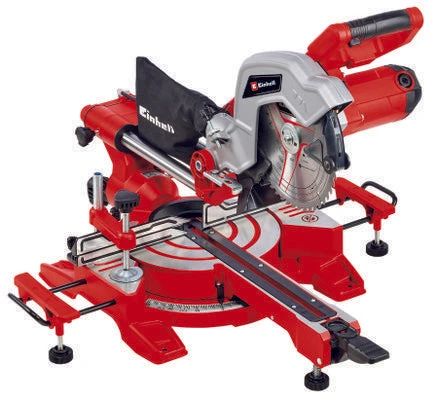

Einhell TC-SM 216 Single Bevel Sliding Mitre Saw (216mm) 1600W

With the Einhell TC-SM 216 drag, crosscut and miter saw the ambitious DIY enthusiast is ideally equipped for cutting and crosscutting jobs in the home, workshed or garage. With a 1,600 W power rating the saw blade (Ø 216 external x ø 30 internal) has plenty of power to cut through material. This sturdy saw has a smooth draw function for wide workpieces. The turntable has a precise angle adjustment facility to make it easier to achieve good angular cuts.

For the most common angles on do-it-yourself jobs, locking positions are provided on the turntable for adjusting the angle quickly and reliably. There are easy-to-read scales for the angles and widths.

Also, the saw head can be tilted to the left for miter cuts. The cutting width is up to 305 millimeters with a 90° setting and up to 210 millimeters with an angle of 45°.

The integrated cutting line laser is an enormous help when working. Supports for longer workpieces are provided on the left and right, and there is a practical clamping device for securing the workpieces. The high-grade carbide saw blade delivers perfect cuts.

To make it easier to change the saw blade there is a spindle lock. For more effective removal of the sawdust there is a dust funnel behind the saw blade. The extractor connection which is provided has a diameter of 36 millimeters, or the supplied dust bag can be used as an alternative.

Features

Smoothly running drag function for wide workpieces

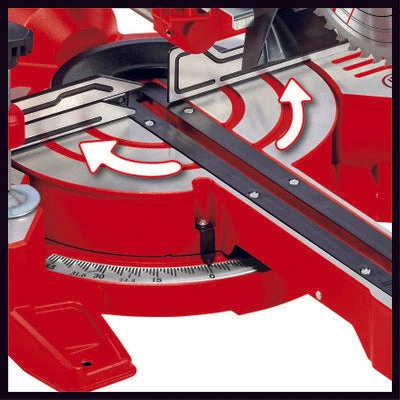

Turntable with precise quick angle setting for angular cuts

Turntable with accurate locking positions for all common angles

Saw head tilts to the left for perfect mitre cuts

The integrated laser is a welcome help for exactly cutting

Workpiece supports on both sides for long workpieces

High-grade carbide-tipped precision saw blade for the best cuts

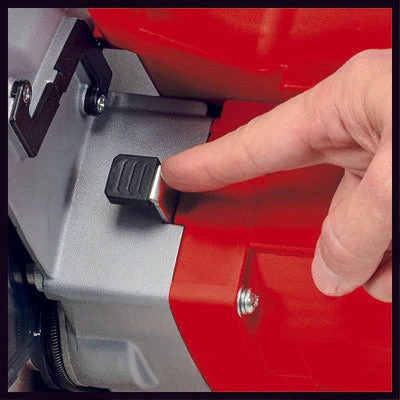

Spindle lock for an easy and fast saw blade change

Clamping device for holding the workpiece securely in position

Well readable scales for the angles and width

Dust funnel behind the saw blade for improved saw dust absorption

Specifications

Mains supply : 220-240 V | 50 Hz

Power : 1500 W

Number of saw teeth : 48 Pieces

Max. power (S6 | S6%) : 1600 W | 25 %

Idle speed : 5200 min^-1

Saw blade : 216 mm x 30 mm

Mitre cut : 45 ° – 0 °

Swiveling range : 47 ° – 47 °

Cutting width 90° x 90° : 305 mm x 65 mm

Cutting width 90° x 45° : 215 mm x 65 mm

Cutting width 45° x 90° : 305 mm x 35 mm

Cutting width 45° x 45° : 215 mm x 35 mm

Diameter of suction adapter : 36 mm

Length : 790 mm

Width : 460 mm

Height : 380 mm

Warranty

24 months manufacturer warranty.
