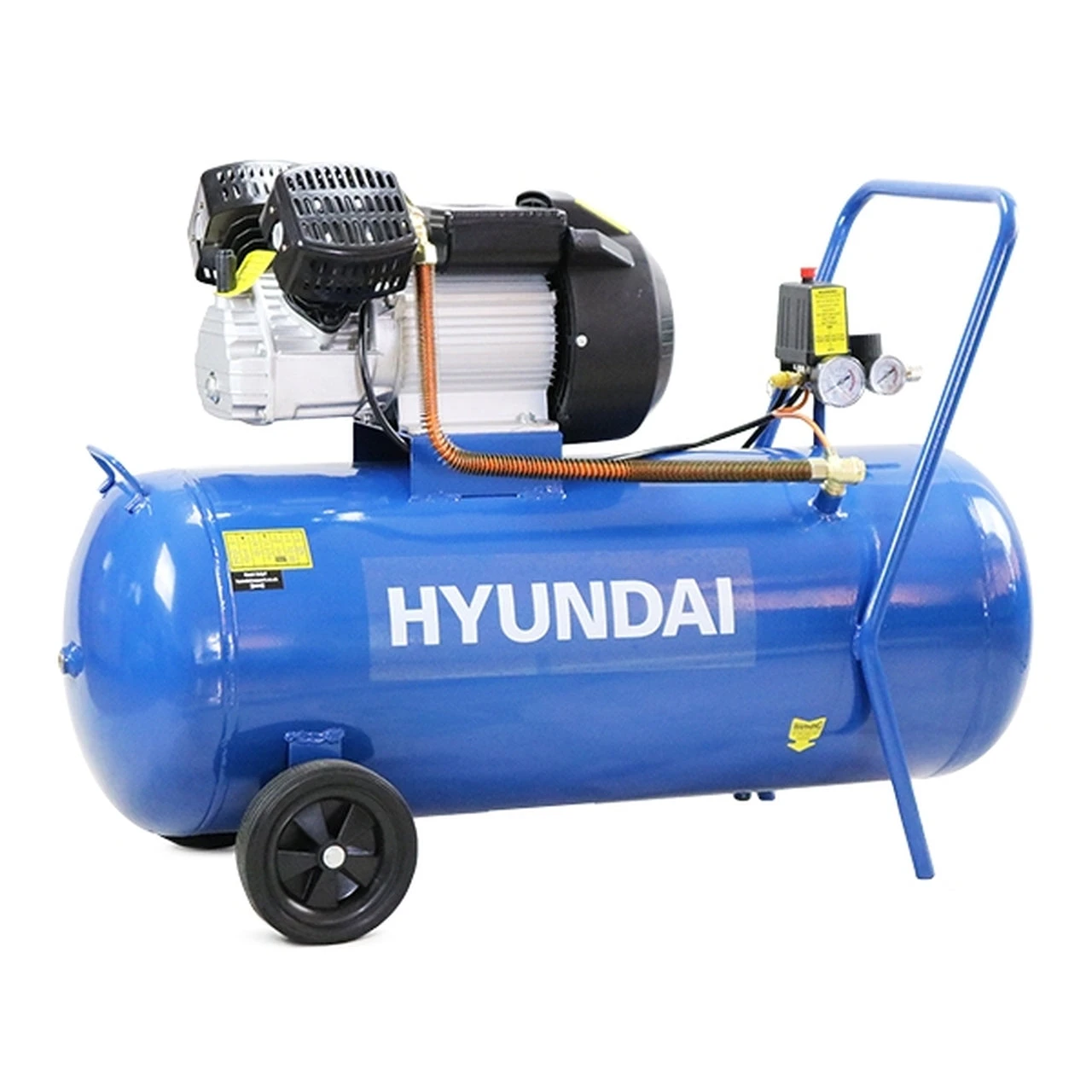

Hyundai HY30100V 100 Litre Direct Drive V Twin Air Compressor, 14CFM/116psi, Silenced – 3hp

Powerful Yet Compact
The HY30100V is a powerful yet compact 3hp V-twin cylinder direct drive air compressor from Hyundai.

Ideal For Various Jobs
Designed for DIY and trade applications the HY30100V air compressor is ideal for spray-painting, operating air tools in the workshop or home garage inflating tyres and inflatables.

Portable Design
Weighing 60kg the HY30100V features 2 rear wheels and transportation handle for easy maneuverability.

Built To Last
The V-Twin pump features long lasting cast iron cylinders and aluminium cylinder heads for improved cooling, and comes ready to go including oil. (Replace the transit plug with the breather/filler plug before use).

Powered By A 13amp Plug
Powered by a 3hp electric motor with a 230v 13amp plug, makes it ideal for home workshop or garage use where conventional residential power sockets are available.

5 Piece Tool Kit
The 5 piece tool kit, which comes with the compressor provides the essential tools to get you started straight out the box for a variety of tasks including spraying, blowing, degreasing and tyre inflating.

Efficient And Compact
The V-twin direct drive design connects the motor straight to the pump increasing efficiency, allowing all the 3hp produced by the motor to be used to drive the compressor air pump producing more power in what is a very compact design.

100L Tank
The 100 litre tank capacity provides a constant supply of air for airtools with 14CFM, 396 litres per minute air displacement. Twin quick release air outlets for increased versatility allow two air-lines / tools to be connected at the same time. The pressure regulator allows the outlet pressure to be increased or decreased and the two pressure gauges measure pressure in the tank and the outlet pressure. It’s also fitted with an over pressure safety valve, the automatic pressure control system switches the compressor off when the maximum pressure of 8 bar has been reached and restarts it when pressure drops to 6 bar.

Quick Release Euro Connectors
Fitted with quick release Euro connectors this compressor is fitted with a standard 13A UK 3-pin Plug.

DIY And Trade Applications
This air compressor provides a fantastic combination of performance and durability ideal for DIY and trade applications.

In The Box:

• HY30100V Electric Air Compressor
• 5-piece air tool kit (high pressure 2m coiled hose with male and female Q/R Euro fittings, tyre inflator, degreaser, spray gun and air duster/jetter all with Q/R fitting)
• User Manual

Assembly Required
Fit wheels (2 bolts), fit cylinder head heat covers (4 screws), fit two rubber feet and screw in air filters. Compressor pump if filled with oil ready for use. This should take 10-15 minutes.

Warranty
Covered by Hyundai 2 year warranty.

Compressor Care
Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank..

Features

• Powerul Engine: Powered by a Hyundai 2.2kW 3hp 230v motor.
• V-twin direct drive pump: fitted with a standard 13A UK Plug.
• 100 litre tank capacity: provides an air displacement of 14CFM or 396 litres per minute and 8bar / 116psi.
• Fitted with twin Euro quick release connectors.
• 5 piece tool kit: including spray gun, air duster/jetter, degreaser gun, hose with Q/R fittings & tyre inflator.
• Includes twin pressure gauges, automatic cut out switch, safety valve and pressure regulator/ adjuster.
• Extensive Warranty: Covered by Hyundai 2 year warranty.
• Full spares available: to maintain your air compressor for years to come.

Specifications

• Model HY30100V
• Start Method 13A UK Plug
• Fuel Type Electric
• Cable Length (m) 1
• Stationary / Wheeled Wheeled
• Drive Type Direct Drive V-Twin
• Tank Capacity (L) 100
• Tank Material Steel
• Discharge Pressure (psi/bar) 116/8
• Max Pressure (psi/bar) 116/8
• Air Flow FAD (L/min) 200
• Air Flow FAD (CFM) 7
• Air Displacement (L/min) 396
• Air Displacement (CFM) 14
• Air Outlet Connection Euro Quick Release
• Voltage 230
• Rated Power (w) 2200
• Motor Power kW/hp 2.2/3
• Pump (RPM) 2850
• Speed (RPM) 2850
• Noise Level (db) 70
• Gross Weight (kg) 64.5
• Net Weight (kg) 60
• Fully Assembled Dimensions (H x W x L) (mm) 730 x 430 x 1020
• Packaged Dimensions (H x W x L) (mm) 800 x 440 x 1100
• Product Type Air Compressor
• Warranty (years) 2
• Model EAN 5056275722746
• In The Box HY30100V Electric Air Compressor, User Manual

Product documents – download

Hyundai HY30100V 100 Litre Direct Drive V Twin Air Compressor, 14CFM/116psi, Silenced – 3hp

Warranty

2 Years manufacturer warranty – Hyundai Warranty
