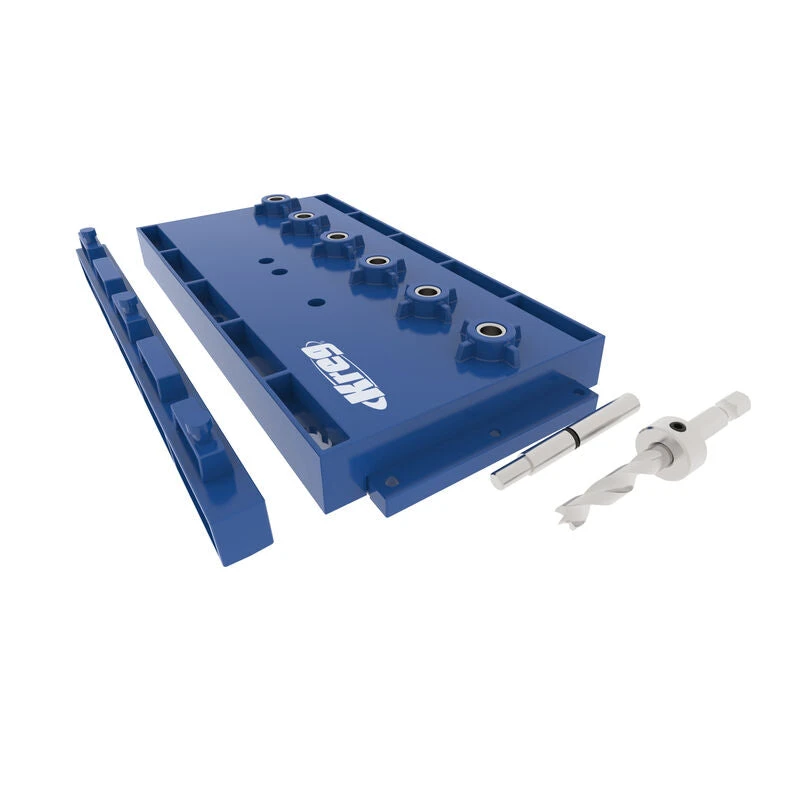

KREG® Shelf Pin Jig With 5mm Bit – KMA3220

Add shelf pin holes to existing furniture or build custom shelves from scratch If you’re adding shelf pin holes to an existing piece of furniture or building shelves from scratch, the Shelf Pin Jig is the perfect tool for the job. Unlike other shelf pin guides, the Kreg Shelf Pin Jig features hardened-steel drill guides that ensure precise and straight drilling, so you’ll get level, wobble-free shelves.

The Shelf Pin Jig also includes a dual-position, adjustable fence for custom hole placement, a locating pin for quick and accurate spacing reference, a jig extender that lets you connect multiple Shelf Pin Jigs together for high-speed production work, and an ultra-sharp 5mm brad-point bit with depth collar that can be stored on the bottom side of the Shelf Pin Jig when not in use.

Hardened-Steel Drill Guides Unlike thin and flexible guides, the hardened-steel drill guides of the Kreg Shelf Pin Jig ensure each and every hole you drill is perfectly straight and true. Plus, all Kreg hardened-steel drill guides come with a lifetime warranty. Perfect for Building or Adding Holes to Existing Furniture The compact size of the Shelf Pin Jig makes it perfect for adding additional shelf pin holes in existing furniture, as well as for building projects from scratch.

Need more length for additional speed?

Connect multiple Shelf Pin Jigs together with the included Jig Extender. Tool-Free Quick-Switch Fence The built-in Quick-Switch Fence allows you to set your pin holes 1″ (25mm) or 2″ (50mm) from the edges of your project. The fence can be easily removed and switched to the other side of the jig, or removed completely when you need to work inside a confined space.

Standard Hole Size and Spacing Kreg hardened-steel drill guides are centered on standard 32mm spacing.

The jig comes complete with a 5mm drill bit that fits commonly available shelf-pins. A 1/4″ (6mm) drill bit is also available separately.

Includes

(1) Shelf Pin Jig

(1) Locating pin

(1) Jig extender

(1) 5mm drill bit

(1) Depth collar with hex wrench

(4) 5mm shelf pins

(1) Owner’s Manual



Features

Six hardened-steel drill guides

Removable, dual-position fence

Standard 32mm hole spacing

Includes 5mm drill bit

Included locating pin for fast, accurate registration

Built-in storage for locating pin, drill bit, and depth collar

Kreg Drill Guides guaranteed for life

Features:

For drilling evenly-spaced holes for 5mm shelf pins

Hardened-steel drill guides

Standard 32mm hole spacing

1″ (25mm) or 2″ (50mm) edge offest

Connect multiple jigs for long runs

Construction: Plastic Polymer, Steel

Capacity: 5mm holes at 32mm spacing

Adjustability: Removeable dual-position fence

Compatibility:

Shelf Pin Jig Drill Bit (¼”)

Shelf Pin Jig Drill Bit (5mm)

Kreg Wood Project Clamps and Face Clamps

Product Video



Warranty

1 year
